Production of composite
reinforcement under the
trademark «LiteCem ARM»

Call

+38 (068) 194-33-33

Contact us

Get Callback

FRP REBAR
PRODUCTION LINE

Proprietary Designing Manufacturing

Qualitatively

Durable

Available

Request a Sample

About company

GRIVAS specializes in designing and manufacturing equipment providing a complete production cycle of lightweight cellular concretes under the trademark GRIVAS Ukraine. For over 18 years, we have been representing our product not only on the Ukrainian market but in many countries all over the world. We are convinced developing and improving are essential aspects of the success of each company. Thus we decided to enlarge the range of our products. Since 2016 our specialists have worked on a topical direction for the construction industry – designing equipment for manufacturing fiber reinforced polymer (FRP) rebars In January 2018, we presented our line under the trademark “LiteCem ARM” for producing FRP rebars. Moreover, manufacturing glass fiber reinforced polymer (GFRP) rebars “LiteCemStrong” and FRP supports “LiteCemAgro” for plants was established.

Equipment for the production of lightweight concrete blocks

Design, manufacture and delivery of equipment for production by non-autoclave production technology:
- Foam concrete blocks;
- Aerated concrete blocks;
- Polystyrene concrete blocks.

Supplies of PFA LiteCem 1/40 protein foaming agent

Supplying materials to produce lightweight concretes – a protein foaming agent PFA LiteCem 1/40, a polypropylene fiber (reinforcing fiber).

Production of GoodReez metal plasma cutting machines

Development, manufacture, sale and maintenance of GoodReez plasma metal cutting machines.

Mobile installations for producing foam concrete

Production and supply of mobile complexes and installations for the production and supply of foam concrete and aerated concrete.

Application of FRP Rebar

FRP Rebar is a completely new material on the construction market, therefore, its areas of application are only expanding and absolutely unexpected, but interesting solutions are constantly being found. Composite reinforcement is widely used in various areas of construction.

Construction (foundation)

Foundations below ground level.

Request a Sample

Road construction

Reinforcement of asphalt pavement helps to solve the problem of potholes and cracks.

Request a Sample

Railway Construction

Laying a railway bed and tracks eliminates induced flows nearby railroad switches.

Request a Sample

Parking lot concreting

The construction of parking lots and parking lots in most cases is costly and has a lot of "pitfalls".

Request a Sample

Wall reinforcement

Reinforcement of floors using composite materials allows you to build objects of various sizes and complexity.

Request a Sample

Agriculture

Composite reinforcement is actively used in agriculture.

Request a Sample

Erecting Bridges

The FRP rebar is used to avoid damages to concrete structures caused by corrosion when using the steel rebar.

Request a Sample

Industrial buildings

Non-metallic reinforcement. Preventing formation of cracks.

Request a Sample

Advantages of FRP Rebars

Strength

Tensile strength values of the FRP rebar are 2,5-3 times higher compared to steel rebar of the same diameter

Thermal Resistance

Operational factors remain unchanged in the range from - 70 to +100° C

Low Weight

Weight is 4 times lower compared to the steel rebar, so the cost for loading-unloading works is significantly decreased, and assembling works are much easier for executing

Chemical Resistance

The material is indispensable when constructing in aggressive environments (acids, salts, alkalis); it’s unaffected by corrosion or decay

Low Thermal Conductivity

Thermal conductivity, which is 100 times lower compared to steel, reduces heat losses significantly

Ecological Compatibility

The FRP rebar is an environmentally friendly material emitting no harmful and toxic matters and complying with European standards

Easy to Transport

Since fiber reinforced polymer rebars are sold in coils, they can be transported even in a car trunk

Dielectric

Electrically non-conductive, electrically safe, non-magnetic

Economic Efficiency

Substituting the steel rebar for the FRP rebar will save up to 30%

Corrosion Resistance

FRP rebars are water-resistant and non-corrosive materials causing no destruction of concrete. The FRP rebar can be used for constructions submerged in water

No Welding

Welding is not required – FRP rebars are tied with wire or plastic zip ties and can be cut with an ordinary hacksaw

Ergonomic

Handling is more ergonomic in any aspect compared to the ordinary steel rebar

Durability

Extending the service life of a structure by 2-3 times (50-80 years)

Radio-transparent

It doesn’t create a shield or interferences to radio waves and mobile network

Any Length

Depending on the diameter, the FRP rebar can be transported in 50-150-meter coils or 6-12-meter rods. The FRP rebar can be cut to any length as per customer’s demands

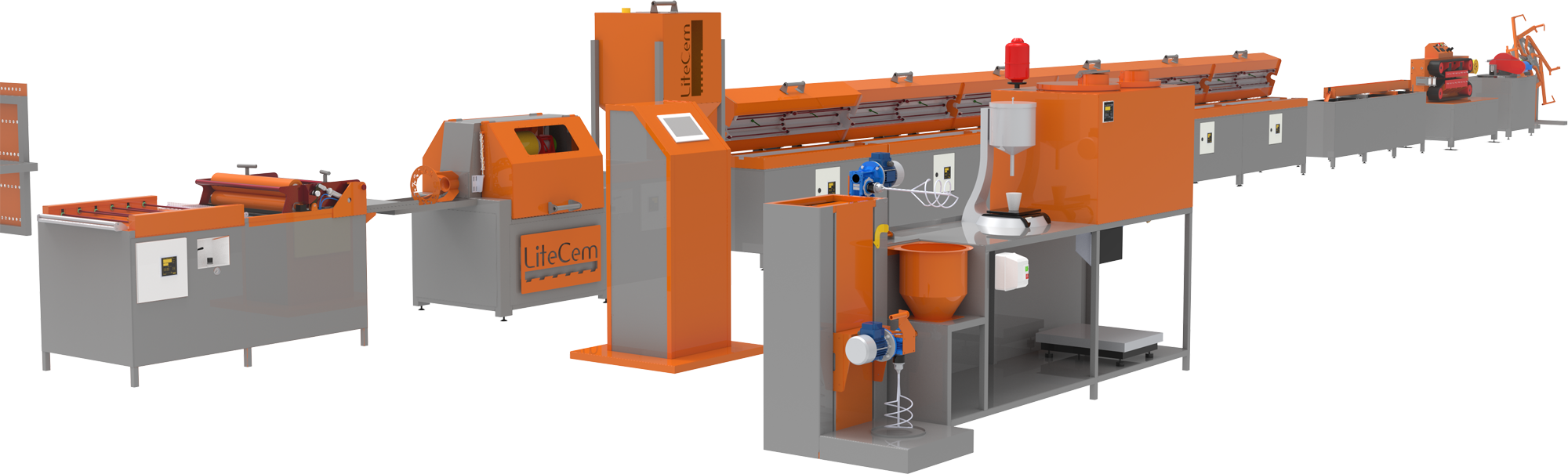

FRP Rebars production line «LITECEM ARM»

+

An automated control panel to operate the line

+

A unit for drying and impregnating a roving

+

A unit for forming a FRP rebar profile

+

A unit for applying a coat to improve adhesion

+

A polymerization chamber

+

A water cooling bath for FRP rebars

+

A belt-type pulling device

+

A cutting device

+

A FRP rebar winder

<span>FRP Rebars</span> production line
A roving creel for holding bobbins with internal unwinding A roving creel for holding bobbins with internal unwinding

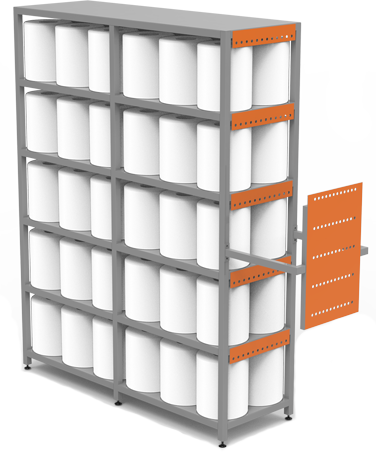

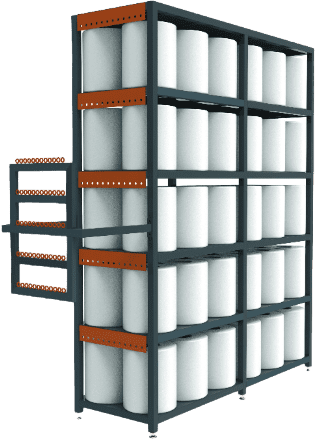

A roving creel for holding bobbins with internal unwinding

A roving creel is a metallic rack designed to hold 60 roving bobbins with internal unwinding. Bobbins are placed in several tiers on the creel.

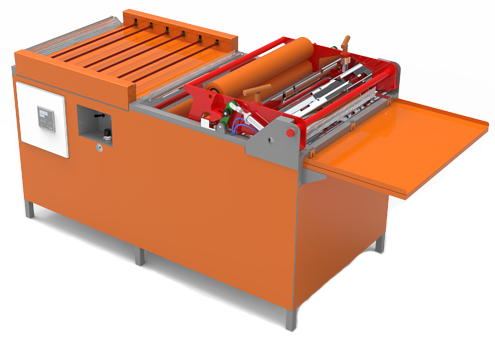

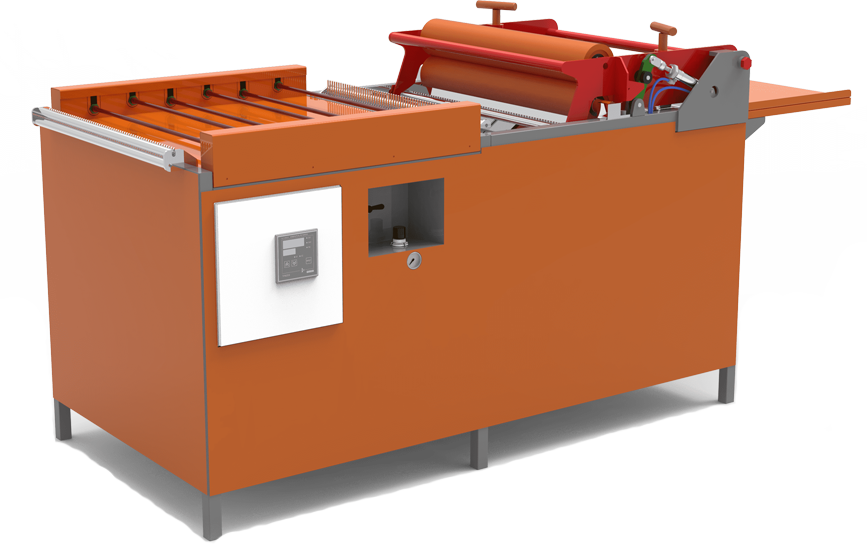

A unit for drying and impregnating a roving

A unit for pre-drying, impregnating, and wringing out surplus resin is one of the most essential parts of the production line “LiteCem ARM”. A roving dryer is needed to preheat fiberglass yarns before impregnating. Preheating fiberglass yarns will dry out lubricant and surplus moisture of roving; thus, it will positively affect the impregnation quality of roving and, consequently, the quality of a finished product will be significantly improved.

A resin bath is designed to impregnate a fiberglass roving with a polymer binder whose surplus will be further wrung out. Stainless steel structures of the resin bath and a cylinder for impregnating have been specially designed to improve the quality of the FRP rebar and reach maximum effectiveness of production.

A unit for drying and impregnating a roving A unit for drying and impregnating a roving
An automated control panel to operate the line An automated control panel to operate the line

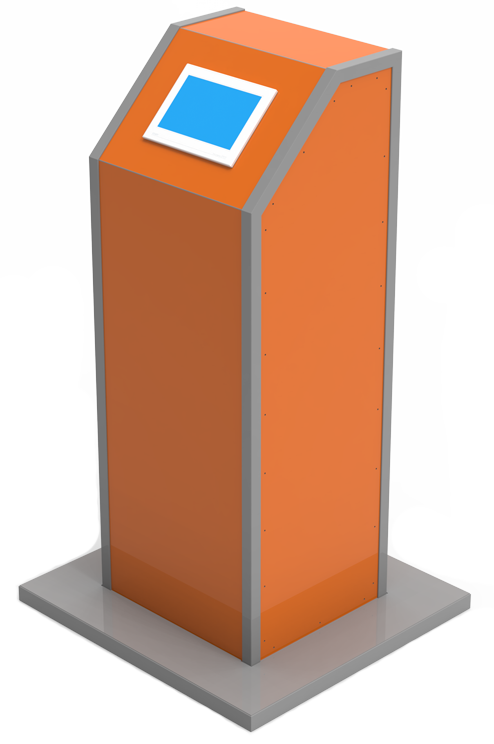

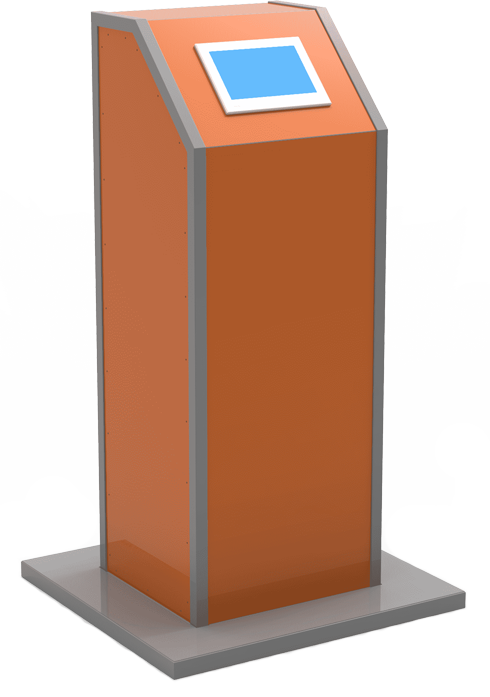

An automated control panel to operate the line

The whole line LiteCem ARM is operated and powered with one centralized control panel.

Capabilities of Control Panel:

  • - Touch control
  • - Processes indicating light
  • - Connecting up to five lines
  • - Fully automatic operation of all devices of the line
  • - Monitoring and accounting FRP rebars being produced
  • - Simple and intuitive control
  • - Possibility of remote connection and control of the line

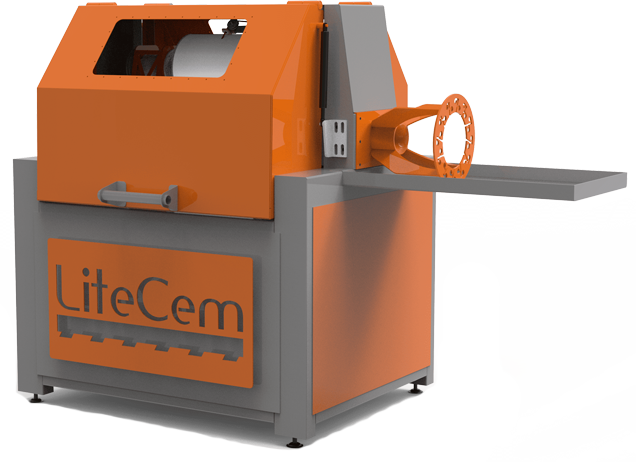

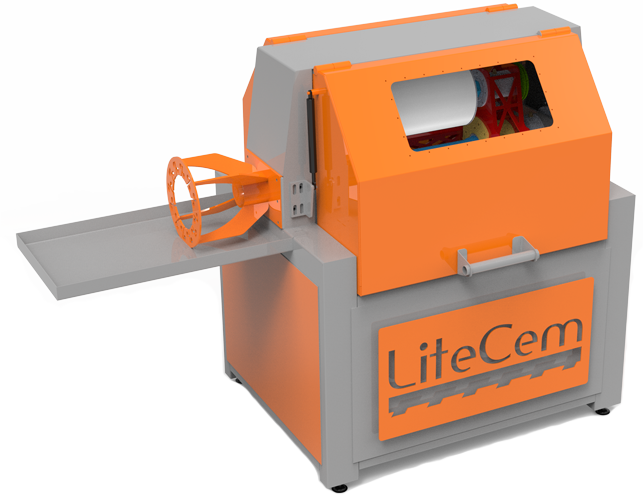

A unit for forming a FRP rebar profile

A forming unit is designed to wind and form the main rod of the FRP rebar by using a basalt winding yarn or a fiberglass roving.

Two external unwinding bobbins with a cardboard core are used for winding and forming yarn.

Replacing bobbins is maximum fast since it requires minimum movements.

A unit for forming a FRP rebar profile A unit for forming a FRP rebar profile
A unit for applying a coat to improve adhesion A unit for applying a coat to improve adhesion

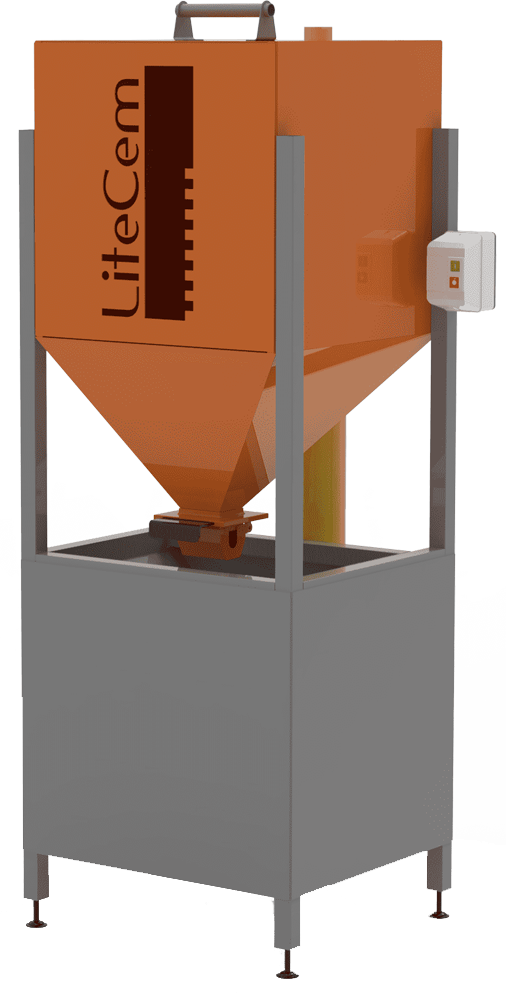

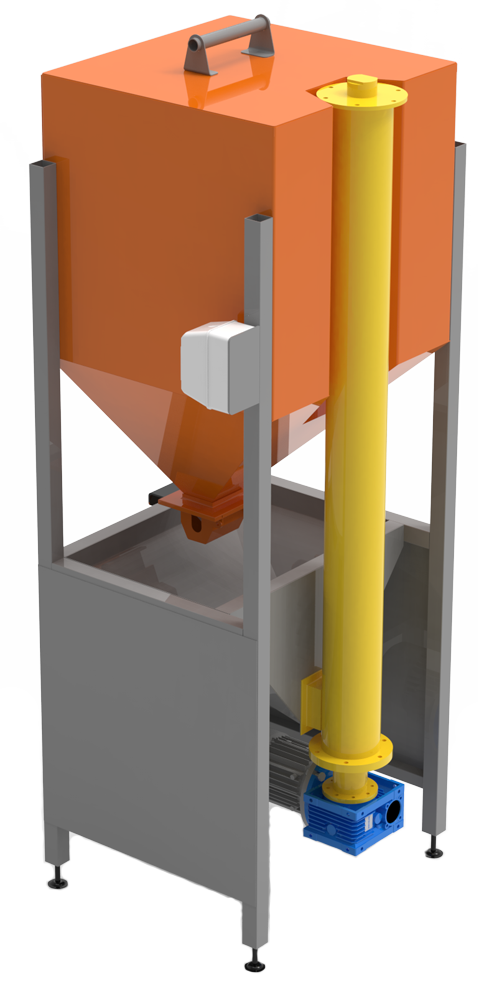

A unit for applying a coat to improve adhesion

This unit has been designed to apply a topcoat and to improve adhesion between FRP rebars and concrete.

Before being fed into a polymerization furnace, a FRP rod is covered evenly with fine silica sand, which is used as a surface layer.

After polymerization, sand and the FRP rod will become an integral whole. Fiber reinforced polymer rebars have maximum adhesion with concrete.

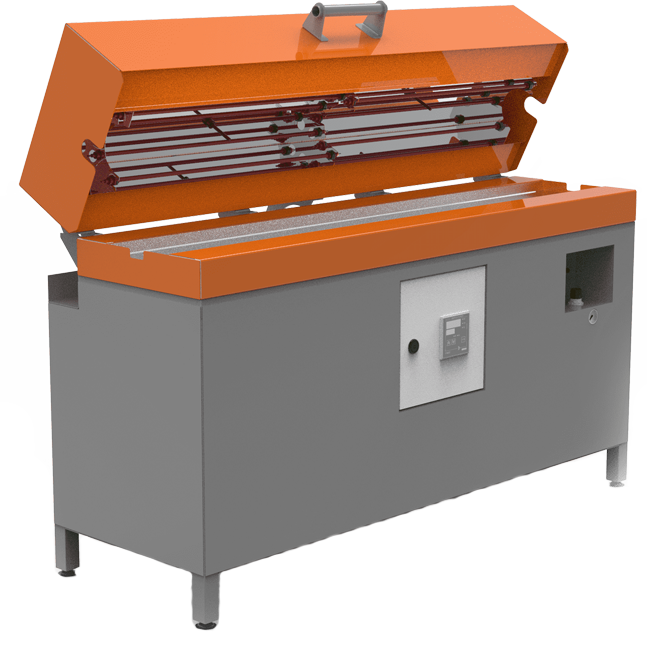

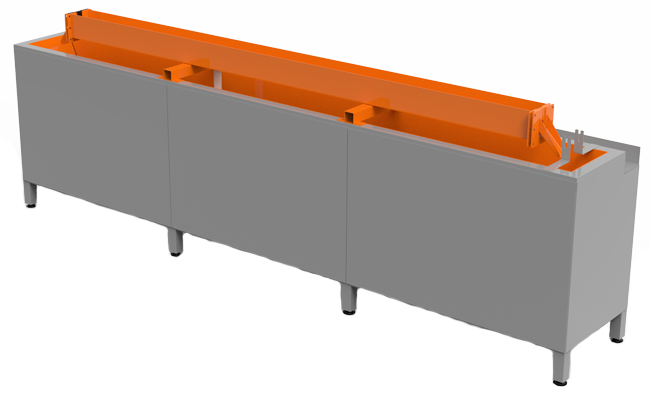

A polymerization chamber

A tunnel-like polymerization chamber is designed to heat binding components of a formed FRP rod up to the required temperature.

Each chamber is heated with electrical heating elements. Temperature is measured with sensors set in two zones to provide highly accurate control and withstand an optimal temperature. Controlling is carried out with the centralized control panel.

A polymerization chamber A polymerization chamber
A water cooling bath for FRP rebars A water cooling bath for FRP rebars

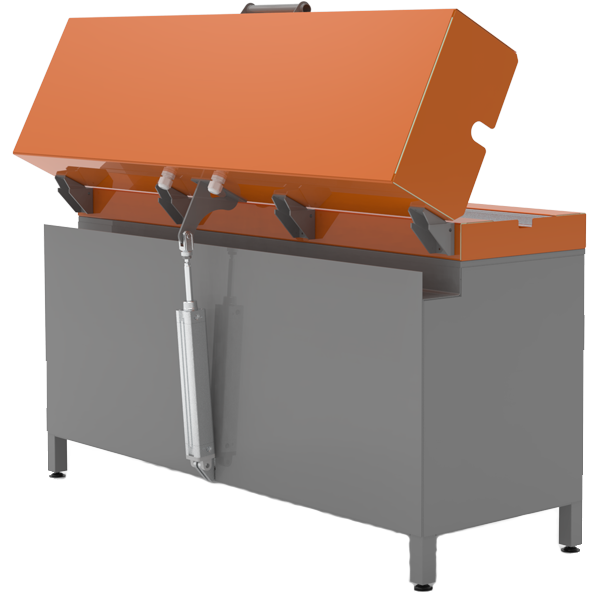

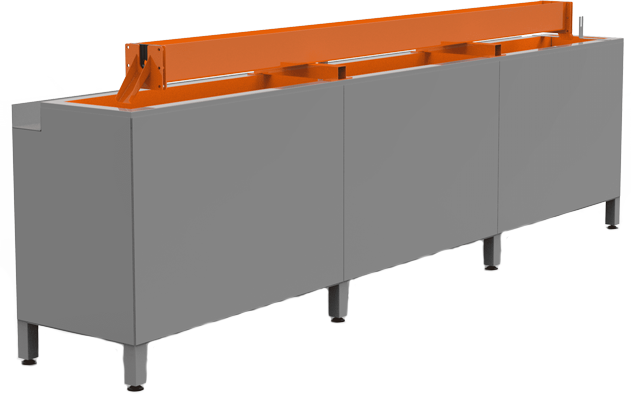

A water cooling bath for FRP rebars

ВA bath is designed to reduce smoothly a temperature of a FRP rod coming out of the polymerization chamber.

Cooling is carried out with a closed-cycle water circulation generated with a centrifugal pump.

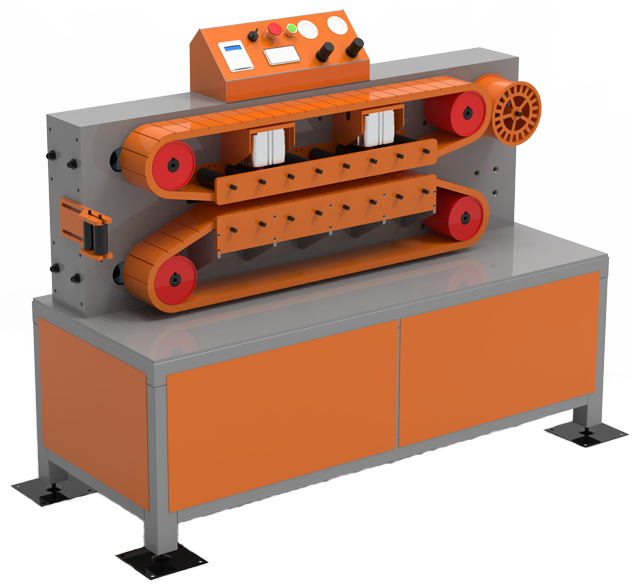

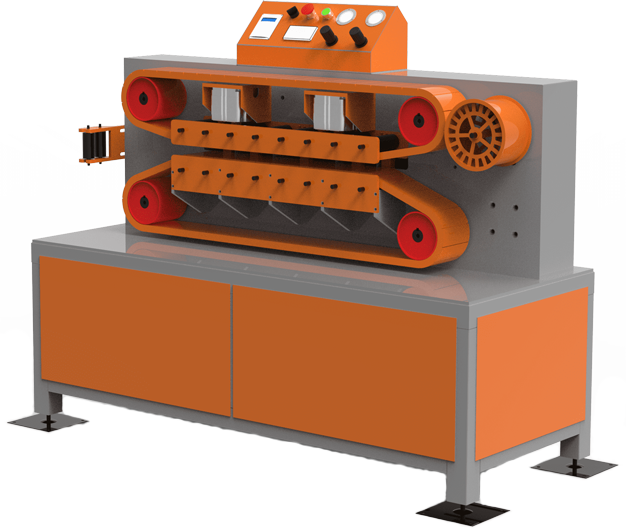

A belt-type pulling device

A belt-type pulling device is used to pull a roving along the whole production line at the preset speed and pressure applied to the FRP rod. A specially designed cantilever-type structure of the device enables threading yarns very fast and starting the production process. A belt of the pulling device is actuated with a gear motor and a chain drive. The pulling device is equipped with electronics to provide a soft start of the gear motor and with a counter transmitting values of the produced length of the FRP rebar to a central control panel.

A belt-type pulling device A belt-type pulling device
A cutting device A cutting device

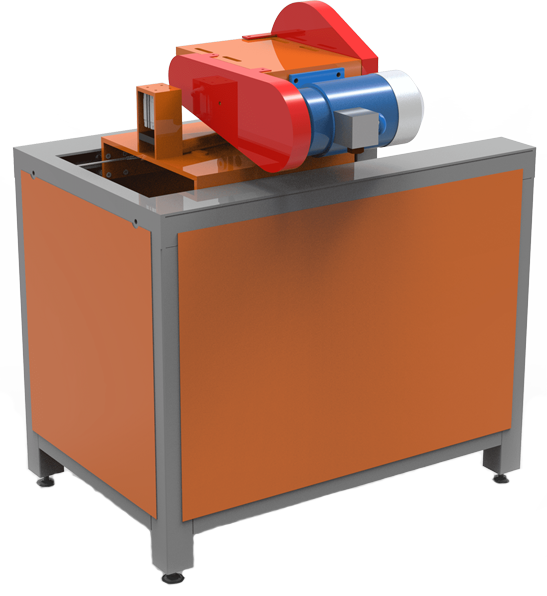

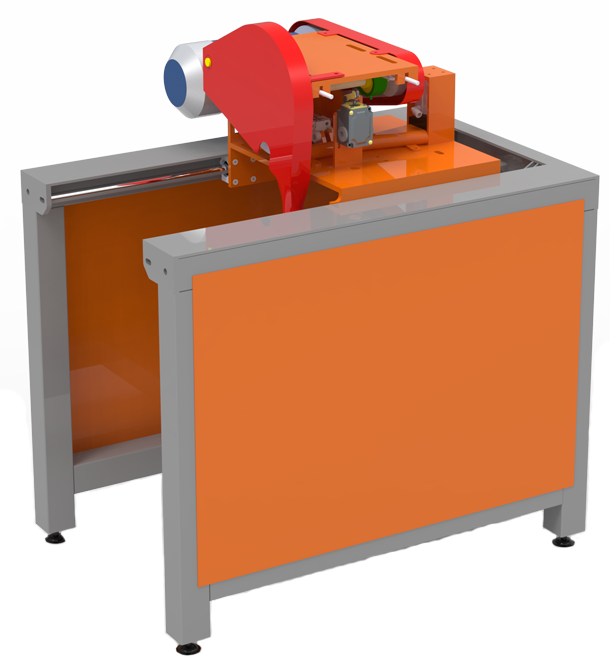

A cutting device

A cutting device is used to cut FRP rebars. Its cutting mechanism cuts the FRP rebar without stopping a pulling process (i.e., continuously). Controlling and calculating meters are performed with special electronics installed on the pulling device. Operating is carried out with the centralized control panel. Thus the FRP rebar can be cut to length from 1 meter up to 150 meters.

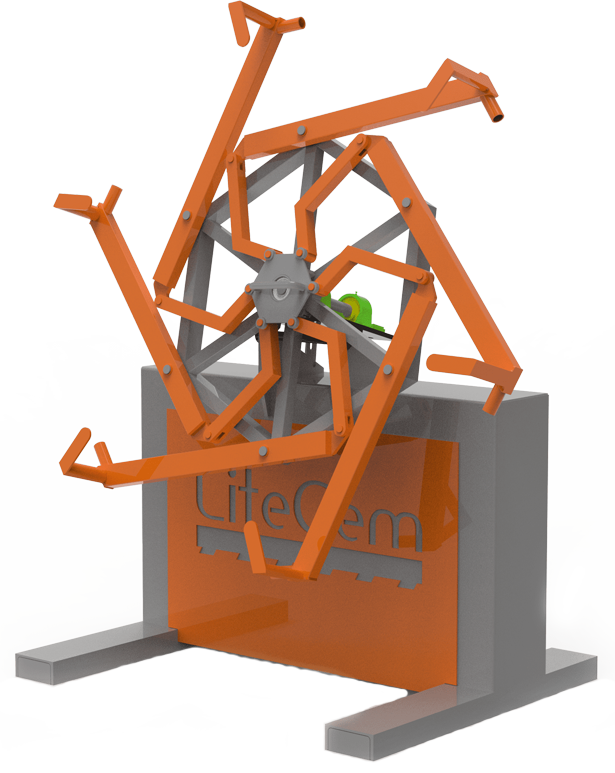

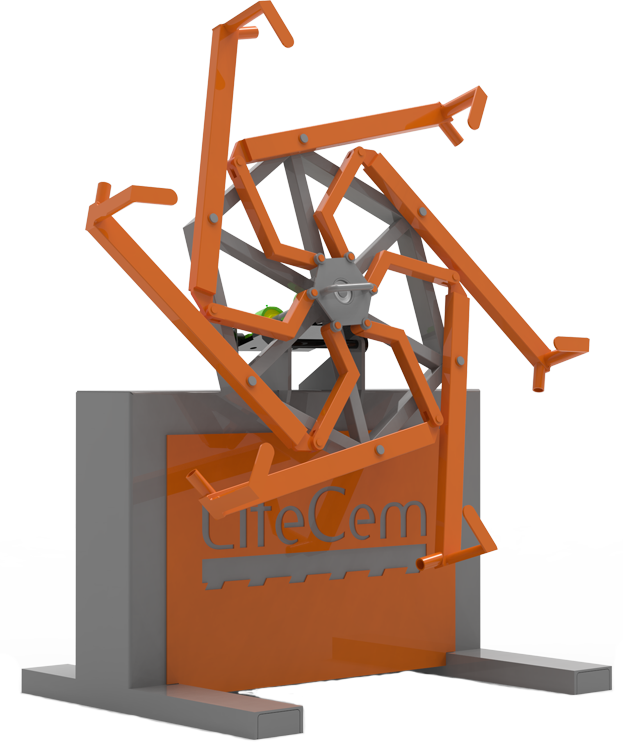

A FRP rebar winder

Winding in coils of 50-150 meters is one of the options to pack the FRP rebar. The length depends on a FRP rebar diameter. The diameter of a coil can be adjusted from 1,0 to 1,5 meters.

A FRP rebar winder A FRP rebar winder

Advantages of FRP Rebars production line
«LITECEM ARM»

01

Service Staff

Only two workers are required to operate a plant consisting of two production lines installed in one workshop. A possibility to scale a production plant having a common control center

02

High Level of Automation

Highly automated processes entail low production costs and a competitive price of produced FRP rebars.

03

Equipment Quality

Constant control of the quality of all production stages of the line «LiteCem ARM».

04

Certified Production

LiteCem ARM line is certified by a CE certificate

Don't rush to leave

By contacting us, you are guaranteed to receive not only the best price, reliable and certified equipment, as well as a full range of services, including delivery, installation of equipment, staff training.
